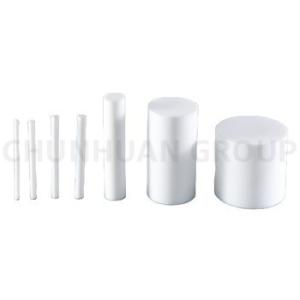

100% Virgin PTFE Molded Rod Color White Dia 20 - 1160 mm Max Length 350 mm For Sealing
PTFE Sheets & Rods exhibit astonishing chemical resistance.
PTFE is a self-lubricating material that provides a low friction coefficient, and is ideally suited for the manufacture of corrosion-resistant gaskets & seals.
PTFE stands for PolyTetraFluoroEthylene, it is a fluorocarbon-based polymer.
Specification of PTFE Rod
PTFE rod can be manufactured by three kinds of process. The rod can be made by paste extruded, plug extruded, and molded.
| OD(mm) | Length(mm) | Length(mm) |
| 1, 2, 3, 4 | continuous length | |
| 5, 6, 8, 10, 12, 15, 16, 18, 20, 22, 25, 28, 30, 32, 35, 40 | 1000 | 2000 |
| 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100 | 1000 | 2000 |
| 110, 120, 130, 140, 150, 160, 170, 180, 190, 200 | 1000 | 2000 |
| 210, 220, 230, 240, 250, 260, 270, 280, 300 | 300 | |
| 310, 320, 330, 340, 350, 360, 370, 380, 390, 400, 410, 420, 440, 450, 460, 470, 480, 490, 500 | 100 | |
Custom specifications of PFFE Rod
| Item | Dia.(mm) | Length(mm) |
| Paste Extruded Rod | 1~4 | According to customer's request |
| Plug Extruded Rod | 4~200 | 500~2000 |
| Molded Rod | 5~500 | 10~300 |
There are many specifications are in stock.The data is too much, it's not convenient to list here.
And special specifications can be customized.
If you have any confuse, please contact us. We will reply you as soon as possible.
Properties
| ITEM | Data | Data Unit |
| Apparent density | 2.10-2.30 | g/ cm3 |
| Tensile Strength | ≥20 | Mpa |
| Elongation at break | ≥200 | % |
| Working Temp | -180~260 | ºC |
| Melting point | 330 | ºC |
| Produce Max.Temp | 390 | ºC |
| Compressive strength 1% deformation | 400-500 | % |
| Hardness | 50-60 | shoreD |
| PTFE Rod Parameter |
| Properties | PTFE extruded rod | PTFE moulde rod |
| 1.Working temperature:-180~+260°C | Diameter:1-200mm | diameter: 6~500mm |
| 2.Melting point:327°C | | |
| 3.Yield strength: 23MPa | Length:1000-5000mm | length: 100-500mm |
| 4.Density: 2.2 g/cm3 | | |
| 5.Coefficient of friction<0.10 | Density:2.21g/cm3 | density:2.22g/cm3 |
| 6.Strong chemical-resistant | | |
| Features: | 1.Use virgin or part recycled ptfe resin to make |
| 2.The size :diameter 4mm~350mm,length 1~5m |
| 3.tolerance :0~+0.2mm |
| 4.Color:natural white,red,yellow,black and so on. |
| 5.Surfact:smooth,no impurities,no black spot. |
| 6.Perfect package :inside is plastic paper ,outside is fumigation wooden box. |
| 7.Delivery time is usually 10days,as can according to the fact quantity to deliver |
| 8.Density:2.10~2.30g/cm³ |
| 9.Tensile strength :20Mpa |
| 10.Crack elongation:200% |
